  1. The Brickstuff rotating beacon kit includes one beacon assembly containing seven LEDs, mounted in the space of a 2x2 LEGO brick. The beacon kit also includes a 1:2 BRANCH04 adapter, for connecting the beacon to a power source.
    • The Brickstuff rotating beacon kit includes one beacon assembly containing seven LEDs, mounted in the space of a 2x2 LEGO brick.

    • The beacon kit also includes a 1:2 BRANCH04 adapter, for connecting the beacon to a power source.

    • The translucent top of the beacon is removable, to allow adjustment of the effect modes. The beacon has 13 effects pre-programmed.

    • The active effect selection is maintained even when power is off.

  2. The beacon includes 13 lighting effect modes. To change the active mode, you can use a paperclip, unfolded. Carefully remove the translucent top of the beacon so the LED lighting assembly is visible.
    • The beacon includes 13 lighting effect modes.

    • To change the active mode, you can use a paperclip, unfolded.

    • Carefully remove the translucent top of the beacon so the LED lighting assembly is visible.

    • One side of the beacon will have a red dot between two metal contacts. Use the paperclip to connect or jump these two contacts-- when a positive connection is made, the lighting mode will advance.

    • When the two contacts are connected by the paperclip (when there is a positive connection), the beacon will "freeze" and only one of the seven LEDs will remain lit. This is how you can tell you've made a solid connection to change the effect mode.

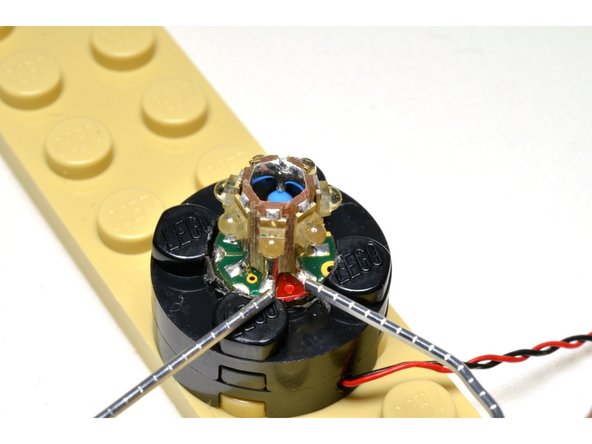

  3. This photo shows a detail view of using the unfolded paperclip to jump the two metal contacts on either side of the red dot.
    • This photo shows a detail view of using the unfolded paperclip to jump the two metal contacts on either side of the red dot.

    • 'When the two contacts are connected by the paperclip (when there is a positive connection), the beacon will "freeze" and only one of the seven LEDs will remain lit. This is how you can tell you've made a solid connection to change the effect mode.'

    • To continue cycling through effect modes, touch the paperclip to the two metal contacts multiple times.

    • The effect mode will automatically cycle back to #1 after passing #13.

    • The active effect mode is preserved even when power is disconnected.

    • This video demonstrates beacon effect #1.

    • This video demonstrates beacon effect #2.

    • This video demonstrates beacon effect #3.

    • This video demonstrates beacon effect #4.

    • This video demonstrates beacon effect #5.

    • This video demonstrates beacon effect #6.

    • This video demonstrates beacon effect #7.

    • This video demonstrates beacon effect #8.

    • This video demonstrates beacon effect #9.

    • This video demonstrates beacon effect #10.

    • This video demonstrates beacon effect #11.

    • This video demonstrates beacon effect #12.

    • This video demonstrates beacon effect #13.
