Tools

No tools required.

Parts

  1. Assemble the LEGO® set, and set aside the two robots in the set once they have been assembled. Assemble the LEGO® set, and set aside the two robots in the set once they have been assembled.
    • Assemble the LEGO® set, and set aside the two robots in the set once they have been assembled.

  2. Once the two robots have been fully assembled, remove the main head pieces.
    • Once the two robots have been fully assembled, remove the main head pieces.

    • You won't need the old eye stalk parts-- you can set these aside.

  3. Thread the wire from the new eye stalks through the hole in the round tile part.
    • Thread the wire from the new eye stalks through the hole in the round tile part.

  4. Press the new eye stalk into the same hole through which you threaded the eye stalk wire in the previous step.
    • Press the new eye stalk into the same hole through which you threaded the eye stalk wire in the previous step.

      • You may need to press with some force to attach the new eye stalk.

      • The wire is strong enough to handle being wedged around the eye stalk.

    • Feed the wire down through the head assembly and to one side of the robot.

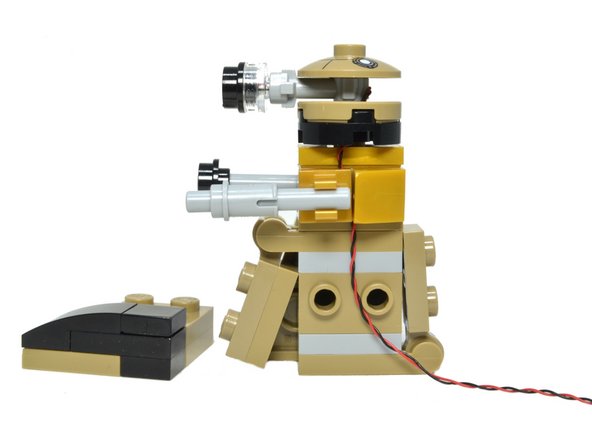

  5. Remove the robot's side pieces and thread the wire down the side. Be careful to feed the wire between the studs, not on top of them.
    • Remove the robot's side pieces and thread the wire down the side.

      • Be careful to feed the wire between the studs, not on top of them.

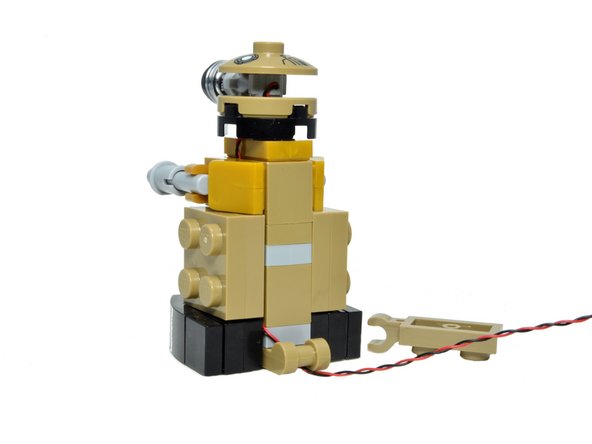

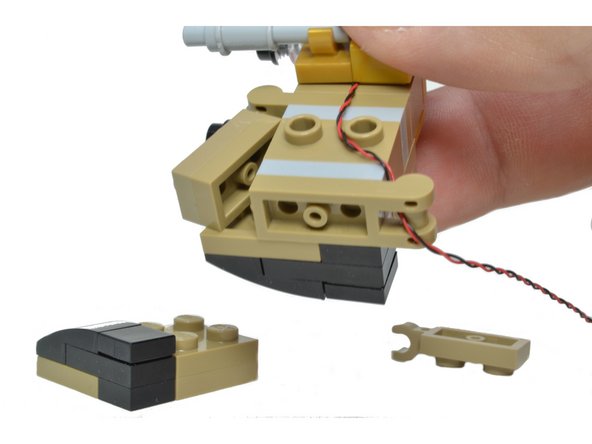

  6. Carefully thread the wire through the hole in the clip on the robot's bottom part in back. Carefully pull the wire through the hole in the clip until the wire is snug against the side of the robot. Remember to make sure the wire feeds between the studs, not on top of them.
    • Carefully thread the wire through the hole in the clip on the robot's bottom part in back.

    • Carefully pull the wire through the hole in the clip until the wire is snug against the side of the robot.

      • Remember to make sure the wire feeds between the studs, not on top of them.

    • Re-attach the side parts you removed earlier.

      • You may need to press the side parts with some force to complete re-attach them.

  7. Connect power to the large connector on the effect controller.
    • Connect power to the large connector on the effect controller.

    • Connect the two eye stalk cables to the two small connectors on the effect controller.

      • Do not attempt to plug a small connector into a large connector plug socket.

      • Note that cables will only fit into connectors one way-- do not force cables into the connectors!

      • You can use your fingernail to fully snap the eye stalk cables into their connectors. You will feel a "click" when the cables are fully inserted.
